Please contact us via "devadasspradeep1996@gmail.com" for component related and licensing discussions.Pourstop component
Download Link - Pourstop This tool adds a bentplate pourstop to the supported beam that are preselected before adding this component. It also adds welded studs to the vertical face of the bentplate pourstop.
Advantages :
Allows user to add multiple numbers of bentplate pourstop in a single click.
Once added, making changes to the existing pourstop is a cup of tea.
Moves along with the beam, if the elevation of the same is altered.
It can be added as a individual member or shop attached to beam.
Cuts and adds closure plates around the column locations.
This component is still in development stage and so we are open to any kinda of suggestions you wish to have them in.Release Notes
Beta Release [vB1]
· Enabled the capability to be added as a component
· Enabled the stud adding capability
· Allows the bent plate to be automatically cut when it
interferes with the column
· Added closure plate functionalityBugs
· You tell mePerquisites
· SDS2 application with a valid license
· Internet Connection
· Windows 10 & above Installation
Step 1 - Download the executable file from the above link
Step 2 - Make sure you have met the above perquisites
Step 3 - Right click on the executable file and run as
administrator and then click on "NEXT".
Step 4 - Leave the folder path as it is and click on "NEXT".

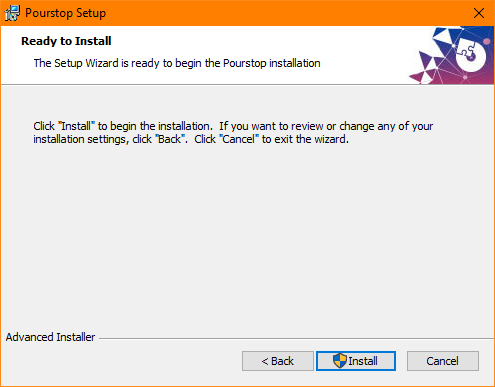

Step 5 - Click on "INSTALL" and give yes if anything pops up.
Step 6 - Click on "FINISH" and the component is installed in your PC. but wait you still have to follow the below steps to run this component in the SDS2 modeling window.
Step 7 - Navigate to Program Files (x86) --> Devadass Pradeep --> Pourstop and copy the "Pourstop" folder alone (Leave out "Pourstop Registration" application)
Step 8 - Paste the copied "Pourstop" folder into whatever versions of SDS2 you require
Exmaple - SDS2 v2020 - Navigate to Local Disk (C:) --> ProgramData (Show Hidden Files) --> SDS2_2022 --> plugins --> Distributed --> BV (If not found, create one) --> Paste the copied "Pourstop" folder.
Step 9 - Now run the "Pourstop Registration.exe" application mentioned in Step 7 and click generate
Step 10 - Mail to "devadasspradeep1996@gmail.com" for the activation key
"AND BOOM, YOU ARE ALL SET TO RUN THIS TOOL"
